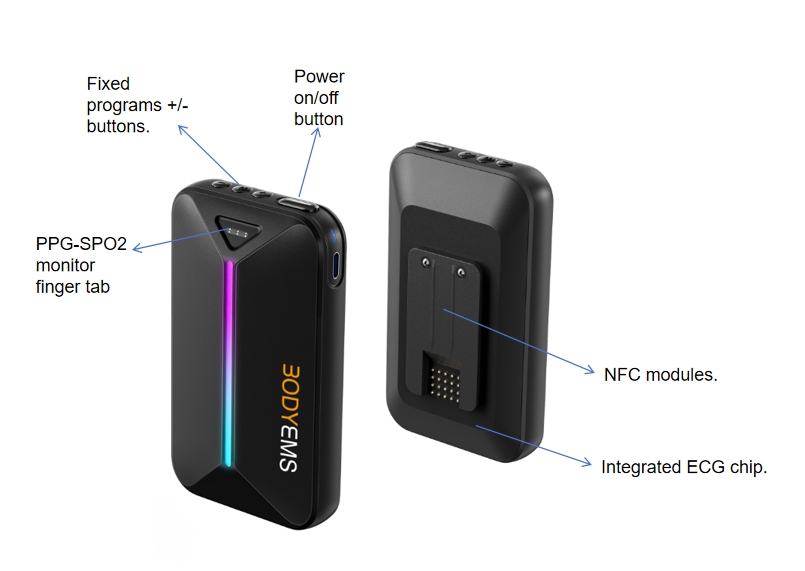

BodyEMS new EMS machine:

Special new fetures:

10 Channels output

* 10 Channels EMS output for full body EMS suit

3 Offline training programs

* 3 Offline training programs controlled by fixed key, +/- strength key

1 ECG & PPG monitor

* Integrated ECG/PPG Chip to monitor body heart rate, ECG/PPG flow records, SPO2 data

1 PBF monitor

* Integrated PBF Chip to monitor body PBF and PBW data

1 NFC function

* I NFC module integraed in EMS machine and NFC tag build-in EMS suit to monitor the working time record of EMS suit

Wireless EMS machine:

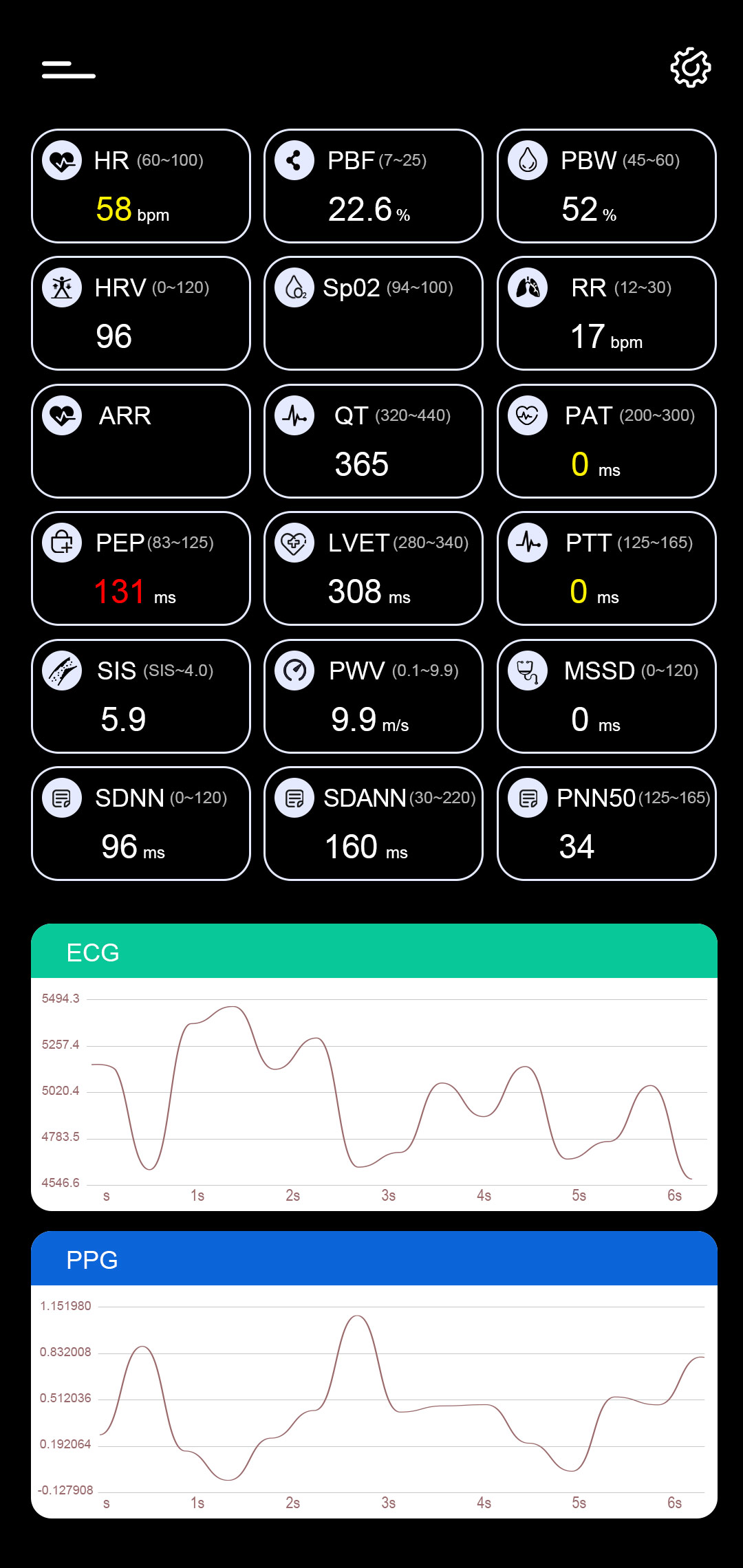

BodyEMS wireless EMS machine mornitoring data:

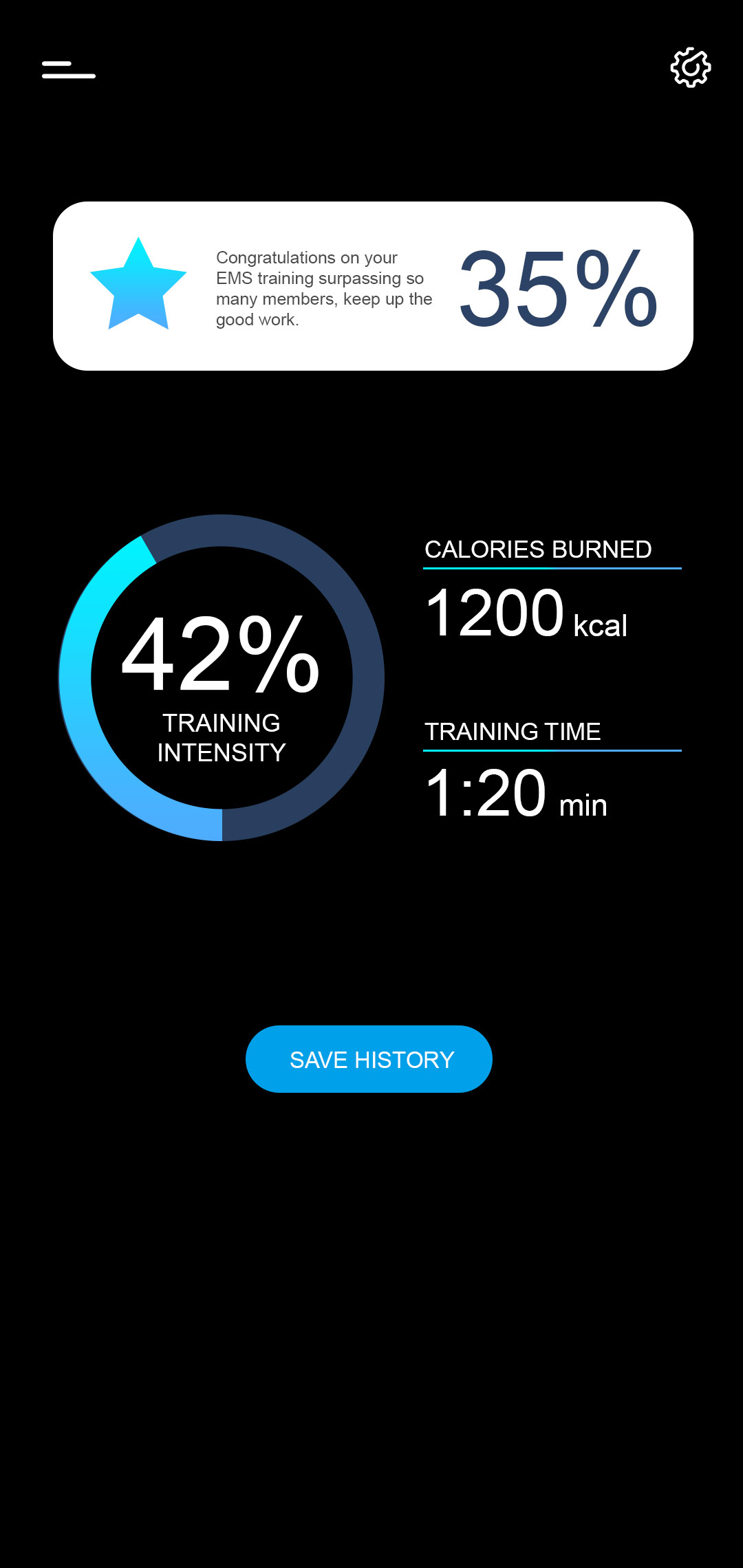

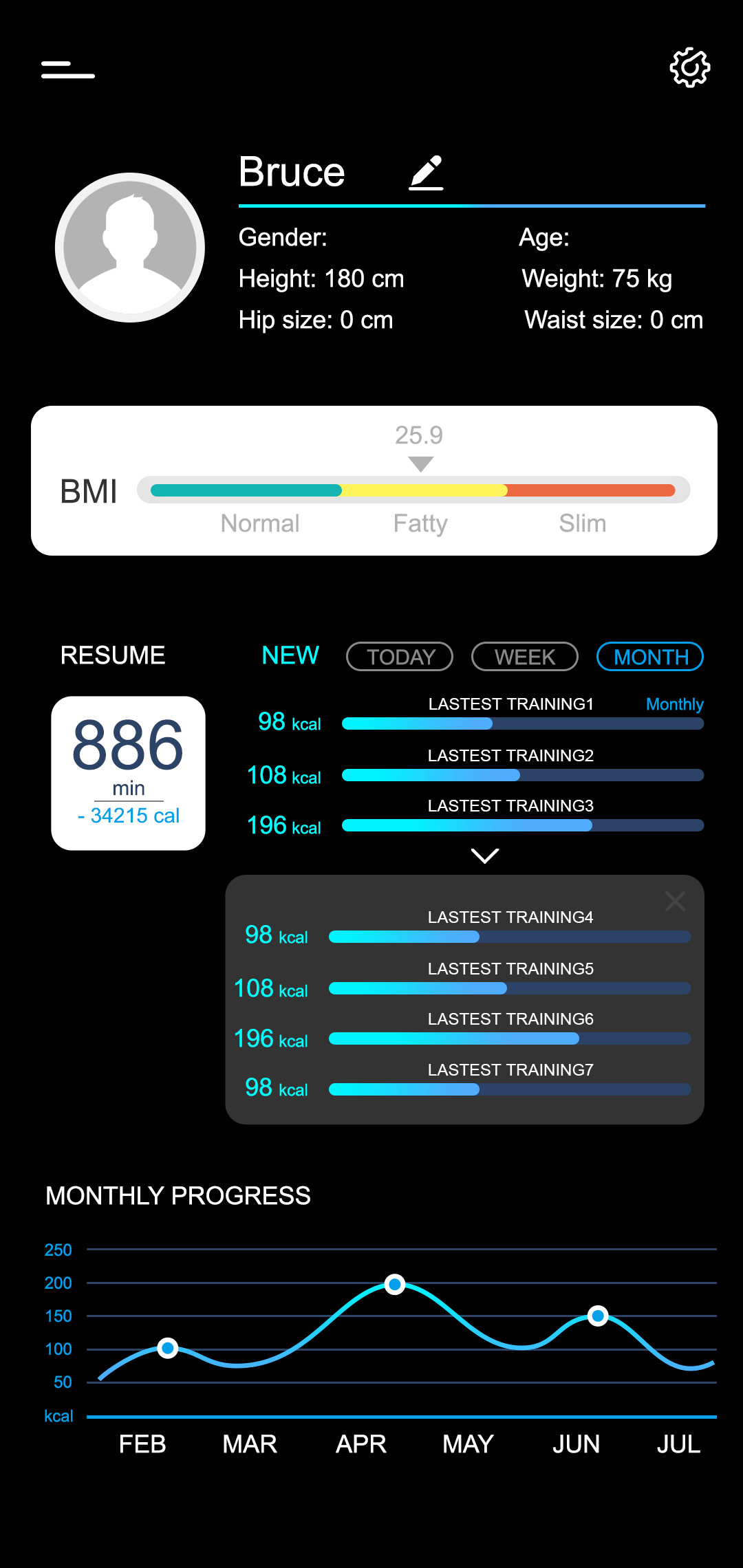

BodyEMS Wirelss EMS machine training records:

Professional monitor contents:

HR - Heart Rate

HRV - Heart Rate Variability

FAG - Fatigue Strength

RR - Respiratory Rate

ARR - Arrhythmia

QT - QT interval

PAT - Pulse Arrival Time

PEP - Pre-Ejection Period

LVET - Left ventricular ejection time

PPT - pulse wave transmission time

SIS - arterial sclerosis index

PWV - heart pulse wave conduction velocity

MSSD - mean square of successive differences of RR intervals

SDNN - Standard Deviation of NN Intervals

SDANN - Standard Deviation of the Average NN intervals

PNN50 - The percentage of the number of adjacent NNs with a difference of >50ms in the total number of sinus beats

BFP - Body Fat Percentage

BWP - Body water percentage

SPO2 -

ECG WAVE Trend

PPG WAVE Trend

BodyEMS wireless EMS machine specification:

Weight: 135g

Power Supply: 2000mAh rechargeable lithium battery

Maximum Charging Current: 1A

Power Supply Range: 3.2‐6V

Maximum Working Current of Whole Machine: No more than 1A (regulated power supply test)

Standby Current: 40 MA±3 (power supply test method)

Static Current: No more than 30uA

Low Voltage Alarm: 3.3V red light flashes

Treatment Current: 6mA‐100mA

Output Interface: Metal probe

Output Channel: 10 channels

Frequency Range: 4 ~ 200Hz

Pulse Width: 100 ~ 1000us

Fundamental Waves: (Biphasic)

Square wave

Trapezoidal wave

Sine wave

Triangular wave
