Conductive Shoulder Garments for TENS Therapy Relief

Detailed Description

A conductive shoulder garment is a wearable textile integrated with TENS (Transcutaneous Electrical Nerve Stimulation) electrodes, designed to provide targeted pain relief and muscle rehabilitation for shoulder-related conditions.

Key Features and Design Specifications

Integrated TENS Electrodes

*Conductive materials: Medical-grade electrodes (e.g., silver-coated fibers, carbon-infused fabric) strategically positioned to target key shoulder muscles (e.g., deltoids, rotator cuff, trapezius) and nerve pathways.

*Electrical parameters: Delivers adjustable low-frequency impulses (1–150 Hz) with pulse widths of 0.04–0.3 ms to modulate pain perception and promote muscle relaxation.

Ergonomic and Adaptive Design

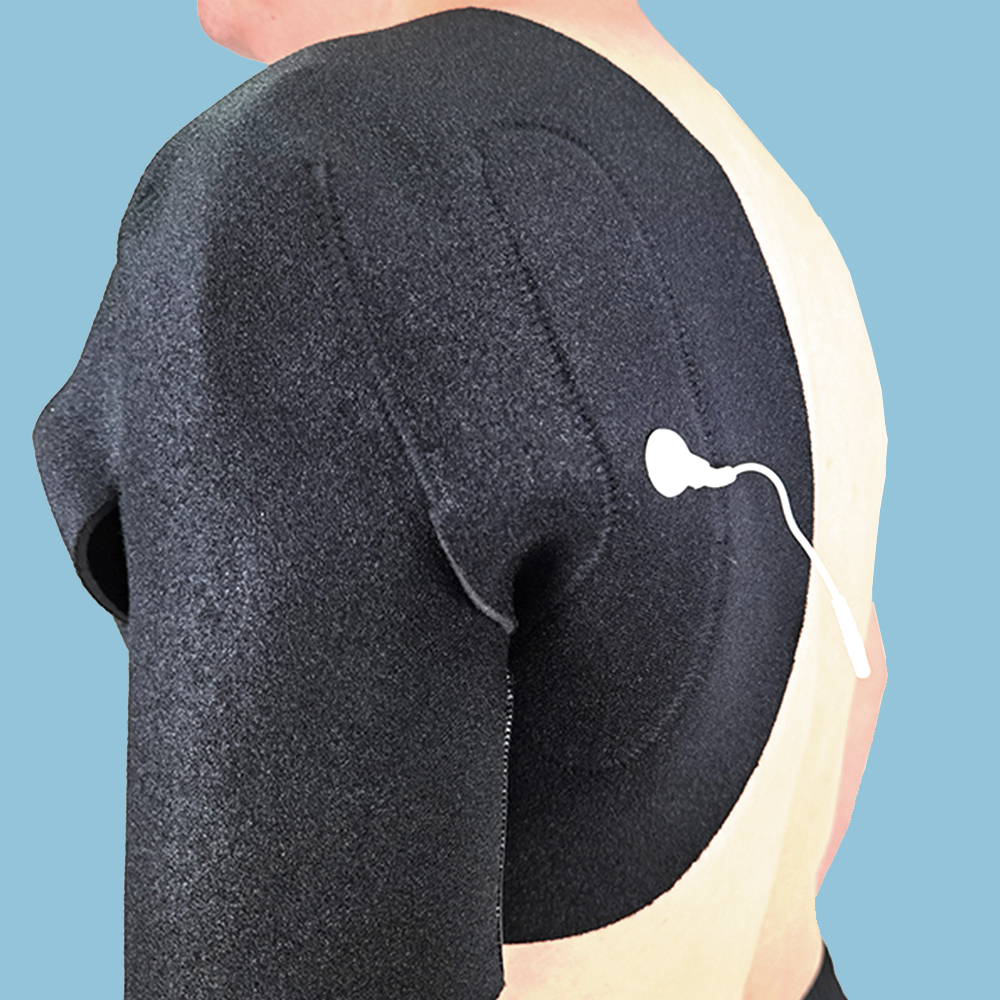

*Anatomical shaping: Contoured to fit the shoulder joint and upper arm, ensuring consistent electrode contact during movement.

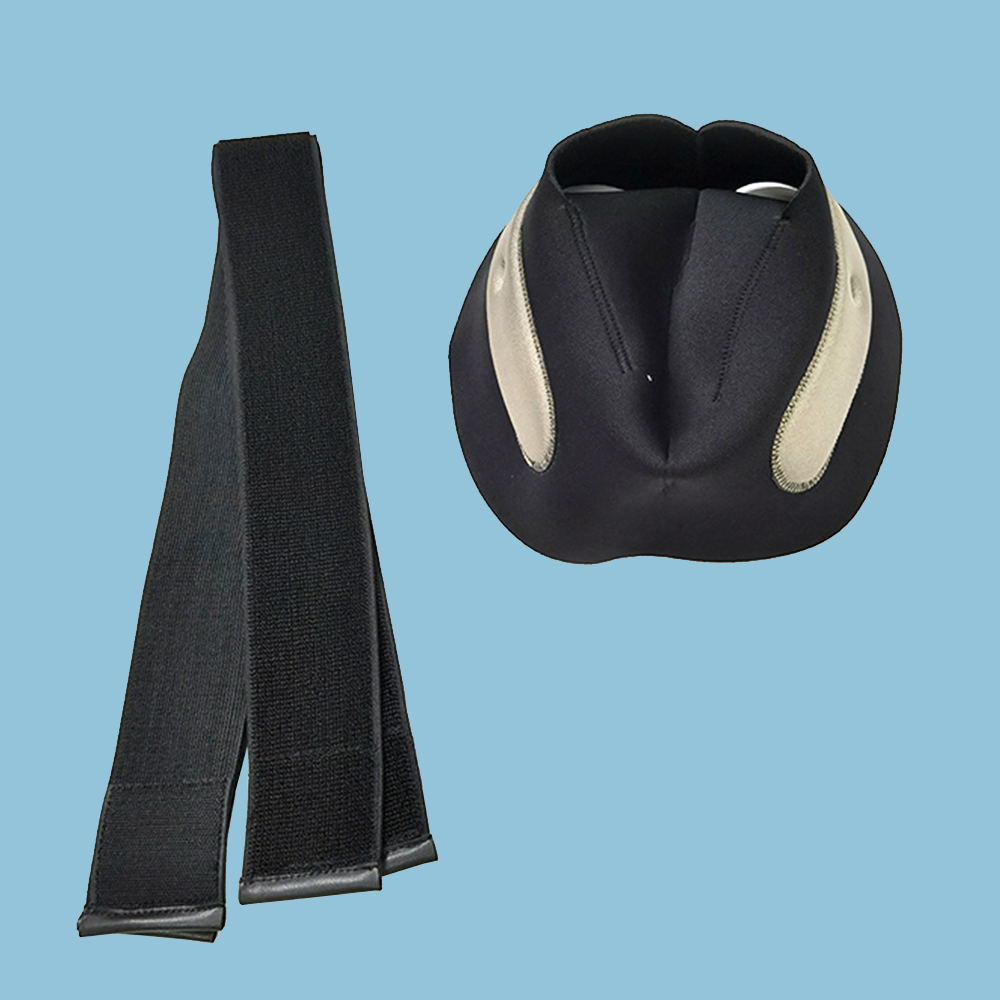

*Adjustability: Features adjustable straps or compression sleeves to accommodate varying shoulder sizes and maintain optimal pressure without restricting mobility.

Compatibility and Customization

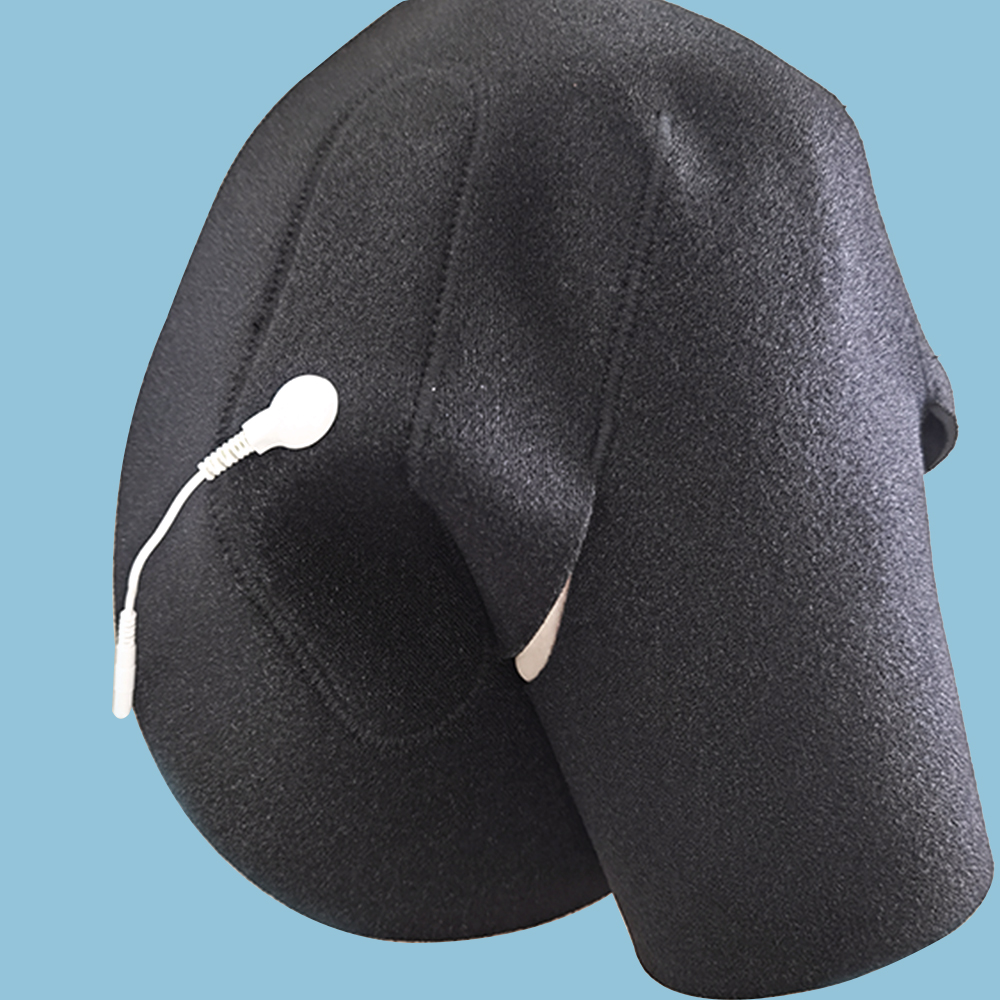

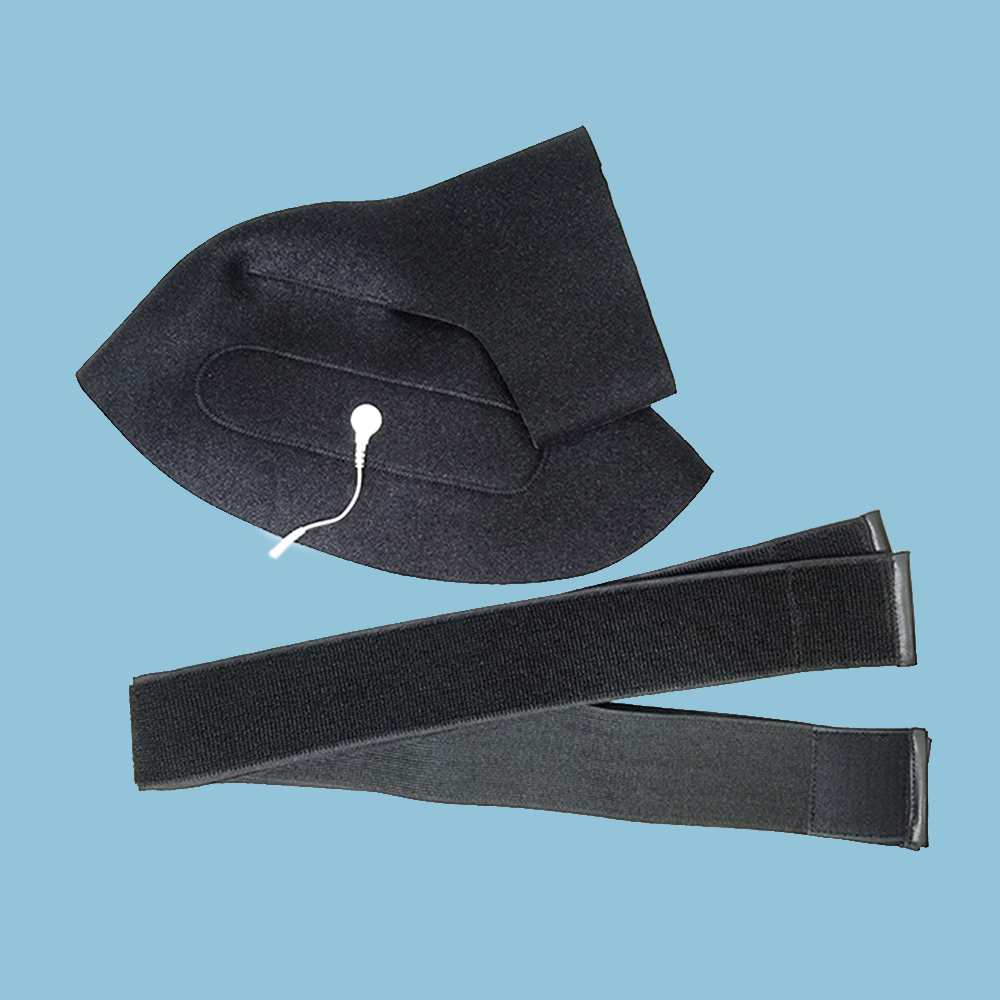

*Device connectivity: Equipped with snap-fastened lead wires to pair with standard TENS/EMS units.

*Programmable modes: Supports multiple TENS modes (e.g., continuous, burst, modulation) for pain relief, muscle recovery, or strengthening.

Material Safety and Durability

*Hypoallergenic fabrics: Breathable, moisture-wicking materials to reduce skin irritation during prolonged use.

*Reusable option: Washable electrode garments for hygiene and convenience.

Primary Applications

*Chronic Shoulder Pain: Addresses discomfort from rotator cuff injuries, frozen shoulder (adhesive capsulitis), or osteoarthritis.

*Post-Surgical Rehabilitation: Supports recovery after shoulder arthroscopy, rotator cuff repair, or joint replacement.

*Sports Injuries: Reduces pain and inflammation from strains, tendinitis, or overuse (e.g., swimming, tennis).

*Postural Pain: Alleviates tension caused by poor ergonomics or prolonged desk work.

*Muscle Atrophy Prevention: EMS (Electrical Muscle Stimulation) modes help maintain muscle tone in immobilized patients.

Safety Guidelines and Contraindications

*Avoid High-Risk Areas:

*Axillary Region: Avoid electrode placement near the armpit to prevent stimulation of brachial plexus nerves or blood vessels.

*Clavicle and Collarbone: Minimize current near bone prominences to reduce discomfort.

*Open Wounds or Skin Conditions: Do not use over rashes, burns, or post-surgical incisions until fully healed.

General Precautions:

*Contraindicated for users with pacemakers, implanted defibrillators, epilepsy, or pregnancy.

*Limit sessions to 20–60 minutes to avoid skin irritation or muscle fatigue.

*Discontinue use if numbness, tingling, or increased pain occurs.

*Optimal Electrode Placement:

*Position electrodes over muscle bellies (e.g., anterior/posterior deltoid) rather than joints or bony areas.

Follow manufacturer diagrams to avoid overlapping stimulation pathways.

Advantages Over Traditional TENS Electrodes

Aspect                                    Conductive Shoulder Garment                                                          Standard TENS Pads

Targeting                               Precision Pre-mapped electrode alignment for shoulder anatomy   Manual placement risks uneven coverage

Mobility Support                  Stays secure during movement (e.g., arm raises)                                Pads may loosen with activity

Comfort                                Distributed pressure reduces "hot spots"                                            Adhesive edges may peel or irritate

Aesthetic                              Sleev-like or vest design, discreet under clothing                                Visible pads on the shoulder

Evidence-Based Efficacy: Studies show TENS reduces shoulder pain by 25–40% in chronic cases when used 3–4 times weekly, particularly for rotator cuff tendinopathy and post-surgical recovery.

Limitations

*Not a Cure: Provides symptomatic relief but does not address structural issues (e.g., torn ligaments, advanced arthritis).

*Variable Results: Efficacy depends on pain etiology (e.g., neuropathic vs. musculoskeletal).

Conclusion

Conductive shoulder garments for TENS therapy merge wearable technology with non-invasive pain management, offering targeted, drug-free relief for shoulder conditions. Their ergonomic design and compatibility with standard TENS units make them ideal for home or clinical use. However, adherence to safety protocols—particularly electrode placement and session duration—is critical. For sustained benefits, integrate with physical therapy, strengthening exercise
